Features

• 20 Hz to 20 MHz
• Individually Calibrated
• Split Type Clamp-on Design
• Suitable for CISPR 16-2-1, CISPR 22 and CISPR 32 and MIL STD-461
• Three Year Warranty

Product Details

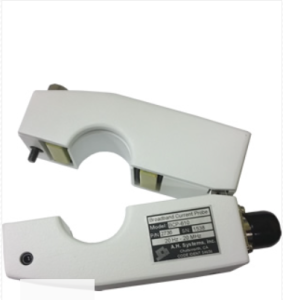

Conducted currents can be measured without making direct contact with the source conductor or metallic surface by means of clamp-on current probes. The BCP-610 Current Probe is designed to permit field intensity meters, spectrum analyzers, and other 50 ohm impedance instruments to measure quantitative magnitudes of current. Measurements can be made on single and multi-conductor cables, ground and bonding straps, shielded conduits and on coaxial cables. A current probe acts as a single turn primary, multiple turn secondary transformer, placing low series impedance in the probed power line or signal lead while capable of driving a usable signal into a 50ohm receiver. A current probe is characterized by its transfer impedance, ZT (dBohm) the ratio of output voltage into a standard load (usually 50ohm for EMI testing) divided by the net current traveling through the probe window area.

For ease and convenience of performing conducted measurements, all of our current probes utilize the split type clamp-on design. Small and lightweight, each Current Probe is manufactured to exacting standards, thus insuring repeatable performance.

RECOMMENDED ACCESSORIES

CPF-630 - Current Probe Fixture

Injection Probe calibration fixtures are a part of the test equipment required by most of the Bulk current Injection Test Procedure Specifications. The Calibration Fixture allows the user to quickly and easily calibrate the injection probe prior to performing the compliance testing. It exceeds DO-160, Section 20 VSWR fixture requirements for stand-alone injection probe calibration fixture.

SAC-213 - 3 Meter N/N Cable

3 Meter RF cable with N(m) to N(m) connectors. Custom lengths can be made to suit your specifications.

TSC-BCP-1 - Carrying case

Rugged polyethylene case that includes a custom foam cutout for the current probes.
