Description
This preamplifier has a broad frequency range and high gain, designed to match the SAS-573 horn antenna. An ideal solution for improving system sensitivity.
Features
- 26 GHz to 40 GHz
- Individually Calibrated (gain calibration included)
- Low Noise, High Gain
- Rugged Construction
Product Details

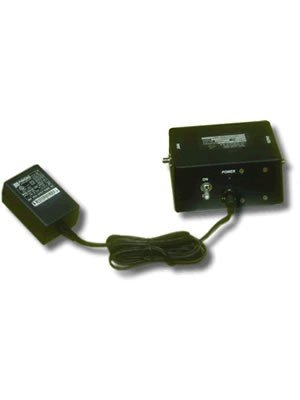

The PAM-2640 Preamplifier. A.H. Systems' Preamplifier line is an excellent choice with a rugged design, no hassles with soldering your own power leads and they improve overall system sensitivity by at least 20 dB. All of A.H. Systems' Preamplifiers come with a 15-volt DC regulated power source. A low voltage indicator confidently allows you to power the amplifier with your own external 15-volt DC battery. This makes it a convenient choice for field measurements. See table above for amplifier specifications.
Recommended Accessories:
- SAC-26G-3 - 3 Meter N/N Cable
- SAC-26G-0.5 - 0.5 Meter N/N Cable
- TSC-PAM - Carrying case for Preamplifier
SPECIFICATIONS
PAM-2640 Preamplifier
| Frequency Range | 26 GHz - 40 GHz |
| Gain (typical) | 20 dB |
| Gain (minimum) | 16 dB |
| Noise Figure | 4.5 dB |
| Flatness | +/- 1.4 dB |
| Maximum Power (dBm) @ 1 dB compression |
+ 6 dBm |
| VSWR (typical) | less than 1.7:1 |
| Input Power | 100/220 VAC regulated P/S output: 15 VDC 180 mA |
| Connectors | 2.9mm(f) to 2.9mm(f) |
| Physical Dimensions: | |
| Height: | 2.5" / 63mm |
| Width: | 3.75" / 95mm |
| Length: | 6.25" / 158mm |
| Weight: | 1.1 lbs. / 0.5 kg |
