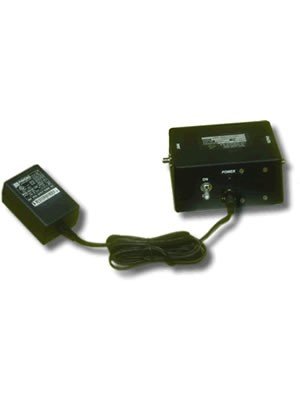

PAM-1840 18 GHz - 40 GHz

Print
Manufacturer: A.H. Systems show products
Hits: 654

Description

This preamplifier has a broad frequency range and high gain. This preamplifier compliments the 26 GHz Antenna Kit. An ideal solution for improving system sensitivity.

Features

  • 20 MHz to 26.5 GHz
  • Individually Calibrated (gain calibration included)
  • FCC, MIL-STD, VDE and TEMPEST Testing
  • Rugged Construction


Product Details

A.H. Systems' Preamplifier line is an excellent choice with a rugged design, no hassles with soldering your own power leads and they improve overall system sensitivity by at least 20 dB. All of A.H. Systems' Preamplifiers come with a 12-volt DC regulated power source. A low voltage indicator confidently allows you to power the amplifier with your own external 12-volt DC battery. This makes it a convenient choice for field measurements.

Recommended Accessories:

  • SAC-40G-1.5 - 1.5 Meter N/N Cable
  • SAC-40G-0.5 - 0.5 Meter N/N Cable
  • TSC-PAM - Carrying case for Preamplifier

 SPECIFICATIONS

PAM-1840 Preamplifier
Frequency Range 18 GHz - 40 GHz
Gain (typical) 20 dB
Gain (minimum) 15 dB
Noise Figure 4.5 dB
Flatness +/- 3.5 dB
Maximum Power (dBm)
@ 1 dB compression
+ 6 dBm
VSWR (typical) less than 1.7:1
Input Power 100/220 VAC regulated P/S
output: 12 VDC  180 mA
Connectors 2.9mm(f) to 2.9mm(f)

Physical Dimensions:
Height: 2.5" / 63mm
Width: 3.75" / 95mm
Length: 6.25" / 158mm
Weight: 1.1 lbs. / 0.5 kg
