Description
This Log Periodic Antenna will provide reliable, repeatable measurements. An ideal solution and a standard workhorse of any EMC test house for compliance testing.
Features
- 650 MHz to 4000 MHz
- Individually Calibrated
- FCC, MIL-STD, VDE and TEMPEST Testing
- Rugged Construction
- Three Year Warranty
Product Details

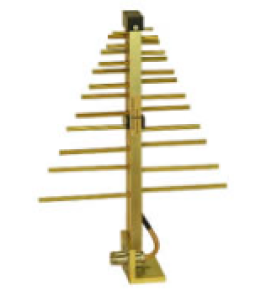

The log periodic antenna is a particularly useful design when modest levels of gain are required, combined with wideband operation. The SAS-519-4 compact Log Periodic Antenna provides optimal performance covering most cell phone, Wi-Fi, WiMAX and GPS bands This directional log periodic antenna has a medium gain, low VSWR and one of the smallest available. This linear polarized, directional antenna can be used for a variety of applications.
* Calibration data and certificate at 1, 3 and 10 meter horizontal polarity included
- Recommended Accessories:
- PAM-0204 (Preamplifier)
- SAC-211 (3 Meter N/N Cable)
- SAC-211-0.5 (0.5 Meter N/N Cable)
- ATU-510 Wooden Tripod
- ATU-514 Plastic Tripod
- AEH-510 - Az and El Head
ACCESSORIES
SAC-211-0.5 - 0.5 Meter N/N Cable, PAM-0204 - 24 dB Preamplifier, ATU-510 - Wooden Tripod, ATU-514 - Plastic Tripod, AEH-510 - Az and El Head, SAC-211 - 3 Meter N/N Cable
SPECIFICATIONS
Antenna Kit Specifications
SAS-519-4 Log Periodic Antenna
| Frequency Range: | 650 MHz - 4000 MHz |
| Antenna Factor: | 20 - 38 dB/m |
| Gain: | 6.7 dBi |
| Maximum Continuous Power: | 700 Watts |
| Max Radiated Field: | 200 V/m |
| Pattern Type: | directional |
| Impedance: | 50 ohm |
| Connector: | N-Type, female |
| Mounting Base: | ¼ - 20 Thread, female |
| Physical Dimensions: | |
| Length: | 11 in. (28.1 cm) |
| Width: | 8.2 in. (20.8 cm) |
| Weight: | 0.7 lbs. (0.32 kg) |
