This Standard Gain Horn Antenna will provide reliable, repeatable measurements. An ideal solution and a standard workhorse of any EMC test house for compliance testing.
Features
- 18 GHz to 26.5 GHz
- Individually Calibrated at 1 Meter Horizontal Polarity
- FCC, MIL-STD, VDE and TEMPEST Testing
- Rugged Construction
- Three Year Warranty
Product Details
The Standard Gain Horn Antennas are designed specifically for utilization in emissions and immunity testing over the frequency range of 1 to 40 GHz. Each antenna is linearly polarized and has medium gain, low VSWR, and a constant antenna factor. The Standard Gain Horn performance is very precise and predictable through design parameters. Comparisons of measured versus computed antenna factors and gain have been shown to be +/- .5 dB. Therefore, the antenna is considered to be a standard reference, similar to that of a resonant dipole below 1 GHz. The coax-to-waveguide adapter is the only power-limiting component on the antenna and can be removed if high fields are desired. Each Standard Gain Horn comes with a tripod mount that adapts to any tripod with 1/4-20 male threads. Horizontal and vertical polarization is obtained by rotating the antenna on the tripod.
Included parts:

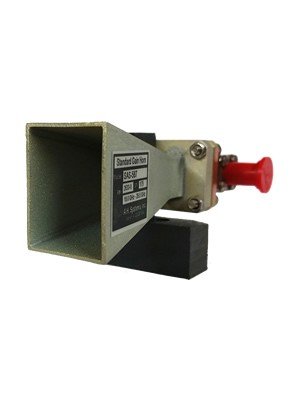

- SAS-587 Antenna with attached waveguide to coax adapter and tripod mount
- Antenna Calibration Manual
- Recommended Accessories:
- PAM-1826 (Preamplifier)
- SAC-26G-3 (3 Meter Low Loss Cable)
ACCESSORIES
SAC-18G-3 - 3 Meter N/N Low-Loss Cable, ATU-514 - Plastic Tripod, AEZ-510 - Az and El Head
SPECIFICATIONS
Antenna Kit Specifications
SAS-587 Standard Gain Horn Antenna
| Frequency Range: | 18 GHz - 26.5 GHz |
| Antenna Factor: | 42.2 dB/m |
| Gain: | 10.0 dBi |
| Maximum Continuous Power: | 50 Watts |
| Max Radiated Field: | 225 V/m |
| Beamwidth E-plane: | 58° |
| Beamwidth H-plane: | 57° |
| Impedance: | 50 ohm |
| VSWR: | >1.5:1 |
| Connector: | WR-42 to SMA female adapter |
| Mounting Base: | ¼ - 20 Thread, female |
| Physical Dimensions: | |
| Length: | 3.4 in. (8.6 cm) |
| Width: | 0.9 in. (2.29 cm) |
| Height: | 1.2 in. (3.05 cm) |
| Weight: | 0.2 lbs. (0.09 kg) |
