Description
Efficient performance covering the common broadcasting frequencies.
Features
- 50 MHz - 220 MHz
- Individually Calibrated
- Receive and Transmit
- Specifically created to cover the VHF and UHF channels
- Rugged Construction
- Three Year Warranty
Product Details

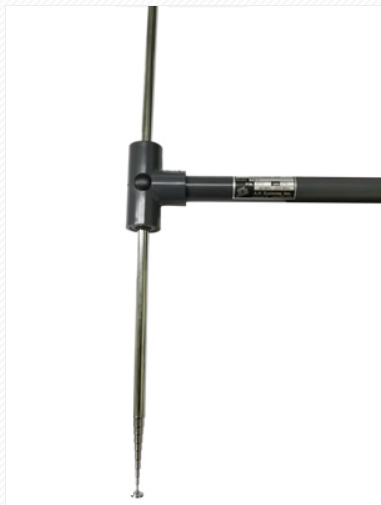

The A.H. Systems' TV-1 adjustable telescoping dipole antenna provides an accurate standard for precise EMI and site attenuation measurements (per OET-55 and ANSI C63.5). This half wave dipole is an ideal solution for Radio/Television broadcast and land mobile radio engineers. The TV-1 is manufactured per the FCC balun design and individually calibrated.

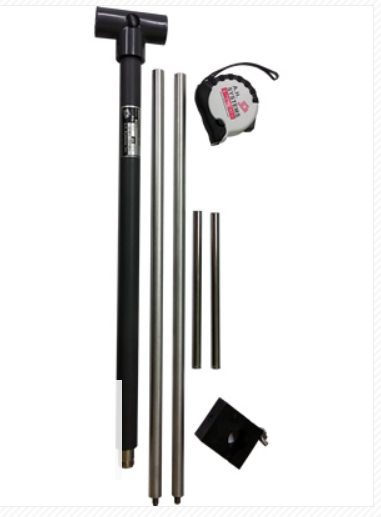

Included parts:
- TV-1 Antenna Balun
- 2 adjustible telescoping element
- 2 extension elements
- Tape measurer, Inch/Metric
- ABC-TD, Balun Clamp with 1/4-20 thread
- Antenna Calibration Manual
ACCESSORIES
ATU-514 - Plastic Tripod
The ATU-514 is a collapsible tripod is built with all non-metallic materials that will not influence your antenna measurements.
AEH-510 - Az and El Head
The AEH-510 Azimuth and Elevation head is used to assist the test engineer in pointing the mounted test antenna towards the device under test. This adjustable antenna mount has a rugged 4" mounting surface with a Captive 1/4-20 male thread for mounting all of A.H. Systems and most other compliance measurement antennas.
TCC-511 - Tripod Carrying Case
Soft tripod carrying case to house and protect any of the tripods and extension legs that we offer.
SAC-213 - 3 Meter N/N Cable
3 Meter RF cable with N(m) to N(m) connectors. Custom lengths can be made to suit your specifications.
Antenna Specifications
TV-1 Tuned Dipole Antenna
| Frequency Range: | 50 MHz - 220 MHz |
| Antenna Factor: | 4 to 16 dB/m |
| Gain: | 0 to 2.2 dBi |
| Maximum Continuous Power: | 60 Watts |
| Impedance: | 50 ohm |
| Connector: | N-Type, Female |
| Physical Dimensions | |
| Length: | 17.5 in. |
| Weight: | 0.7 lbs. |
| Supplied Accessories | |
| One balun mounting clamp with 1/4-20 threads | |
| Two Telescoping Elements | |
| One Tape Measure | |
