SAS-521-2 Unfold

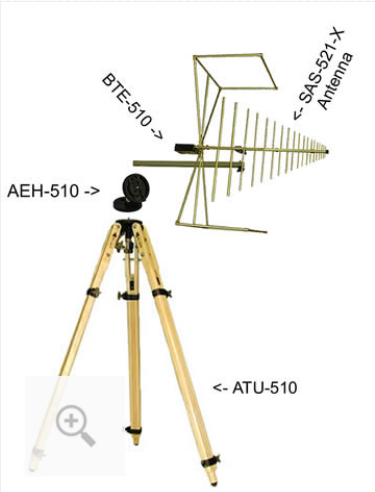

Antenna Kit SAS-521-2 at 25 MHz - 2 GHz

Print
Category: 2.2 - Antennas for compliance testing
Manufacturer: A.H. Systems show products
Hits: 670

Description

Simplify testing with this hybrid antenna providing an inexpensive solution to wide band applications.

Features

  • 25 MHz to 2 GHz
  • Individually Calibrated
  • FCC, MIL-STD, VDE and TEMPEST Testing
  • Rugged Construction
  • Three Year Warranty

Product Details

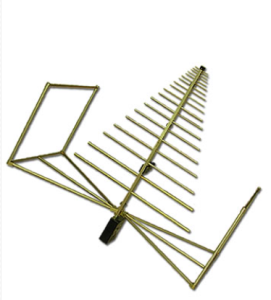

The A.H. Systems' SAS-521-2 Bilogical Antenna is one of our latest antennas, providing an inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 2000 MHz.

* Calibration data and certificate at 1, 3 and 10 meter horizontal polarity included
