Description
For rapid deployment along with the mobility of a small package, this Bilogical Antenna Kit provides an inexpensive solution to broadband applications.
4 reason for a bilogical antenna
Features
- 25 MHz to 7 GHz
- Individually Calibrated
- FCC, MIL-STD, VDE and TEMPEST Testing
- Rugged Construction
- Three Year Warranty
Shipping Information:
Carton size: 33" x 25" x 12"
Shipping Weight: 30 lbs.
Product Details
Suitable for FCC, MIL-STD, VDE, TEMPEST and Immunity testing, this Bilogical Antenna Kit provides consistent and reliable measurements. For rapid deployment along with the mobility of a small package, the folding Bilogical Antenna is folded in half, allowing the antenna to be contained in a rugged compact carrying case. The Bilogical Antenna eliminates the need for antenna switching and therefore makes this unique hybrid a versatile performer.

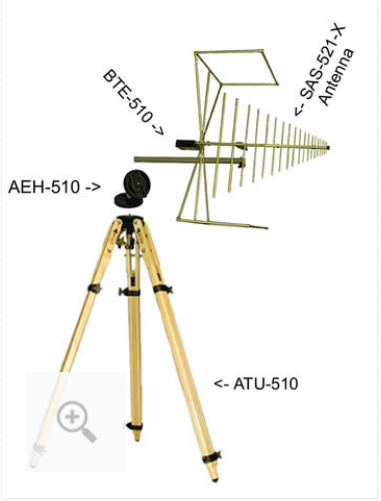

Included Equipment:
SAS-521F-7 25 MHz - 7 GHz
Simplify testing with this hybrid antenna providing an inexpensive solution to wide band applications.
TSC-521F
Antenna Transit Storage case with custom cutouts that can house an optional PAM-0207 (25 MHz - 7 GHz) preamplifier.
SAC-211
N(m) to N(m) 3 meter RF cable.
BTE-510
Antenna Tripod Extender to extend the mounting point of the antenna horizontally off of the tripod that simplifies vertical polarity testing.
Antenna Kit Specifications
SAS-521F-7 Bilogical Antenna
| Frequency Range: | 25 MHz - 7000 MHz |
| Maximum Continuous Power: | 400 Watts |
| Impedance: | 50 ohm |
| Connector: | N-Type, female |
| Mounting Base: | ¼ - 20 Thread, female |
| Physical Dimensions: | |
| Height: | 22.2 in. (56.4 cm) |
| Width: | 38.5 in. (97.8 cm) |
| Length: | 39.0 in. (99.1 cm) |
| Weight: | 4.5 lb.'s (2.04 kg) |
