Monopole Antennas SAS-551 9 KHz - 40 MHz

Category: 2.2 - Antennas for compliance testing

Manufacturer: A.H. Systems show products

Description

Passive monopole for transmitting from 9 KHz - 40 MHz

Features

9 KHz to 40 MHz
Individually Calibrated
FCC, MIL-STD, VDE and TEMPEST Testing
Rugged Construction
Three Year Warranty

Product Details

A.H. Systems' Passive Monopole Antenna provides superior performance in electric field measurements. The Passive Monopole Antenna is used for transmitting to perform shielding effectiveness and immunity testing.

Included parts:

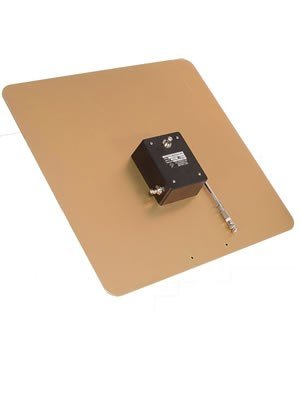

SAS-551 Antenna Base with ground plane
Telescoping Antenna Element
Antenna Calibration Manual

* Calibration data and certificate included.

ACCESSORIES

ECSM Fixture - ECSM Fixture, SAC-212 - 3 Meter BNC/N Cable, ATU-510 - Wooden Tripod, SAC-210 - 3 Meter BCN/BCN Cable

SPECIFICATIONS

Antenna Kit Specifications

SAS-551 Passive Monopole Antenna

Frequency Range:	9 KHz - 40 MHz
Impedance:	Calibrated for use into 50 Ohms
Connector:	BNC-Type, female
Mounting Base:	¼ - 20 Thread, female
Physical Dimensions:
Ground Plane Dimensions:	18 in. X 18 in.
Rod Length:	8.5 in. - 43 in.
Weight:	3.5 lbs.

Attachments

SAS-551_Passive_Monopole_Antenna_Datasheet
pdf | 281.08 KB | 251 hits
