Loop Antennas SAS-560 20 Hz - 2 MHz

Print
Manufacturer: A.H. Systems show products
Hits: 704

Description

This Loop Sensor is built for MIL-STD-461 low frequency magnetic field testing.

Features

  • 20 Hz to 2 MHz
  • Individually Calibrated
  • MIL-STD-461 RE101
  • Rugged Construction
  • Three Year Warranty


Product Details

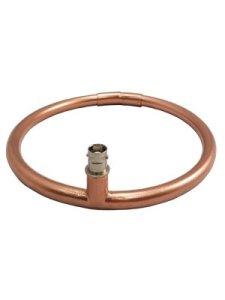

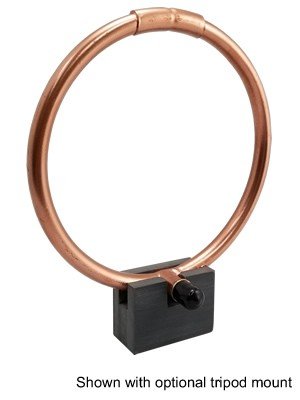

The SAS-560 passive Loop antenna was built for MIL-STD-461 RE 101 testing. This passive loop antenna has 36 turns enclosed in an electrostatic shielded loop. The loop diameter is 5 1/4" (13.3 cm) and has approximately 10 ohms of DC resistance. The Passive Loop Antenna is an ideal solution for a wide range of magnetic field testing. Whether used in a set to measure shielding effectiveness per MIL-STD 285 and NSA 65-6, or individually to satisfy specific requirements; this Loop Antenna is an efficient, low cost solution.

  • Recommended Accessories:
  • SAC-210 (3 Meter BCN/BCN Cable)
  • SAC-212 (3 Meter BCN/BCN Cable)

ACCESSORIES

SAC-212 - 3 Meter BNC/N Cable, SAC-210 - 3 Meter N/N Cable,

 SPECIFICATIONS

Antenna Kit Specifications

SAS-560 Passive Loop Antenna
Frequency Range: 20 Hz - 2 MHz
Turns: 36
Wire type: 7-41 Litz
Shielding: Electrostatic (Faraday) Shield
Connector: BNC, Female
Physical Dimensions
Loop Diameter: 5¼ in. (13.3cm)
Weight: 0.2 lbs. (0.09 kg)
