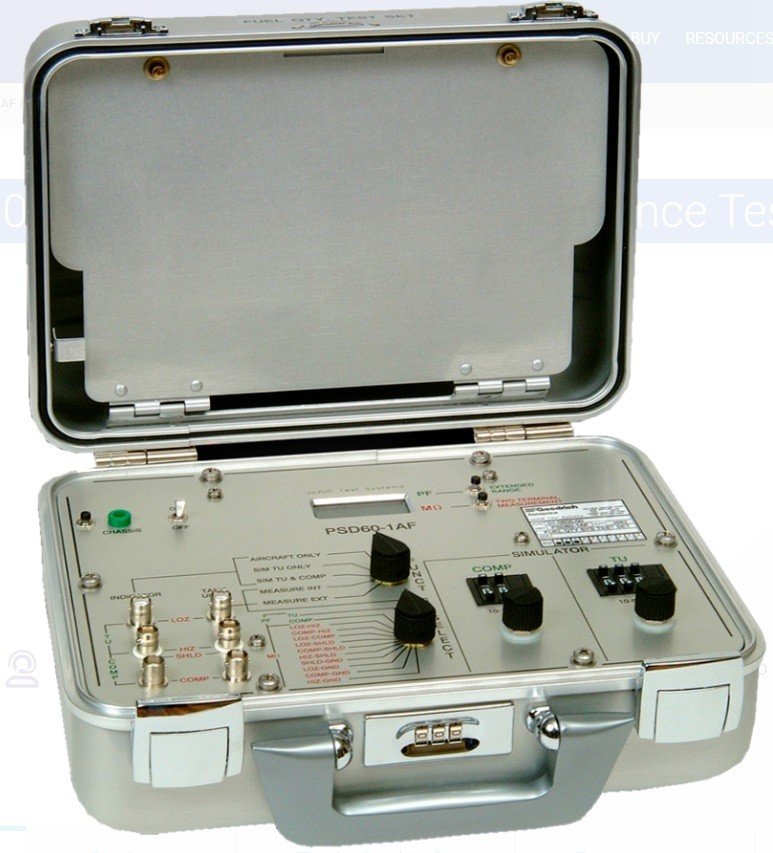

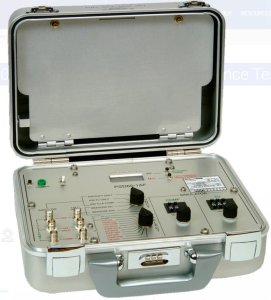

The PSD60-1AF is designed to calibrate and troubleshoot any AC capacitive fuel, oil or LOX quantity system. This test set is utilized extensively by rotary and fixed-wing military aircraft operators around the world.

The PSD60-1AF will:

• Measure the capacitance of any AC capacitive fuel, oil or LOX quantity transmitter, or sets of transmitters connected in parallel
• Simulate either one or two capacitors simultaneously to calibrate any AC capacitive liquid quantity gauging system
• Measure the insulation resistance in megohms of capacitive liquid quantity transmitters (probes) and/or aircraft wiring

NSN: 6625-01-297-5305

*Aircraft-specific interface cables are required and must be purchased separately.

• Solid-state circuits and LCD backlit display for low power consumption and high reliability
• Battery-powered for complete portability and ease of maintenance
• Lightweight aluminum case has hinged compartment in lid for test lead storage
• Small size permits testing in restricted spaces
• Push-button "extended range" switch permits readings up to 9,999 pf or 10,000 megohms - over-range indication on LCD
• Tested and approved for use in any function with fuel in tanks; battery power eliminates need for voltage (safety) checks
