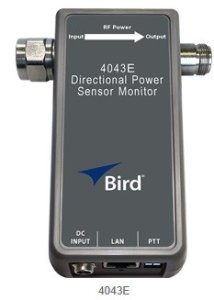

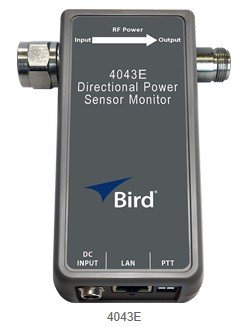

RF - 4043E - Ethernet Directional Power Sensor Monitor

Print
Manufacturer: BIRD RF show products
Hits: 609
Item No : 4044
Item Name : Non-Directional Power Sensor
Measurement Range FWD Power : 2.5 W to 125 W
Measurement Range RFL Power :  N/A
Measurement Accuracy : ±5% of reading

A powerful monitoring solution for smaller radio networks - Maximize Up-Time

A powerful approach to antenna and power monitoring for smaller radio communications systems, and paging networks. Designed for smaller sites where the Bird 3141 Channel Power Monitor would be under-utilized, and connecting directly to the Internet or private IP network, they can be accessed remotely for both set-up and monitoring.

Bird’s 4043E Ethernet Directional Power Sensor Monitors provide reliable remote site monitoring to maximize uptime of mission critical communications. Unlike competitive solutions, 4043E RF Power Sensors can monitor for and alarm in the event of a reduced antenna VSWR. This provides an early warning of increased losses in the transmission line resulting from water ingress, damage, or deterioration.

Installed post-combiner, the 4043E RF Power Sensor Monitor can generate alarms according to pre-configured parameters for forward power and minimum/maximum VSWR, then communicated to users with SNMP traps. The 4043E provides composite power monitoring.

PRODUCT FEATURES

  • Frequency range includes 8 bands between 118 and 940 MHz
  • Provides composite power monitoring
  • Ethernet Interface

APPLICATIONS
Commercial, industrial, and government land-mobile-radio (LMR) wireless-communications systems including:

  • Public Safety
  • Marine/Coast Guard
  • Private Networks
  • Railroad
  • Civil Aviation
