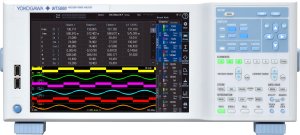

WT5000 Precision Power Analyzers

Reliable Today, Ready for Tomorrow

• Make measurements you can trust with a guaranteed accuracy of *0.03%
• 10MS/s, 1MHz power bandwidth, 18 bit resolution enabled by Yokogawa isoPRO™ fiber optic isolation technology
• Simultaneously analyze 7 phases with one chassis, producing over 1000 power parameters real-time
• Precision current measurement guaranteed by innovative symmetric coaxial shunt design
  *basic power accuracy
• Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis

Innovate with Precision, Flexibility and Confidence

• Modular architecture with 7 user swappable and reconfigurable input elements
• High-accuracy element, built-in DC power supply, enables both easy wiring and reliable high-precision, large-current measurements
• Up to 10ms data update, up to 50ms data update when using data streaming
• Follows frequency fluctuations in input signals by auto update mode
• Synchronize multiple chassis for large multi-phase systems
• For motors and generators up to 4 speed and torque inputs** can be used measuring total system efficiency
• Isolate and measure harmonic losses with configurable advanced filtering for simultaneous wideband and harmonic power analysis
  **can be configured as auxiliary inputs
• Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis

Precision Made Easy

• Highly responsive 10.1 inch electrostatic capacitive touch screen
• Intuitive and easy menus to connect, configure, measure and record
• Modular interconnect design putting safety first

Video: https://tmi.yokogawa.com/eu/library/videos/product-overviews/wt5000-precision-power-analyzer_an-introduction/

Product pics: https://cdn.tmi.yokogawa.com/1/7088/files/WT5000_2062px.png

Brochures:

• WT5000 Precision Power Analyzers — https://cdn.tmi.yokogawa.com/1/7098/files/BUWT5000-01EN.pdf
• Specificații WT5000 — https://cdn.tmi.yokogawa.com/1/7113/files/Specifications%20WT5000%20Precision%20Power%20Analyzers%20Yokogawa%20Test%20Measurement%20BUWT5000%2002EN.pdf
• WT5000, opțiuni /DS, /G7 — https://cdn.tmi.yokogawa.com/1/8198/files/LFWT5000-01EN.pdf
• Flyer caracteristici și beneficii WT5000 — https://cdn.tmi.yokogawa.com/8/8233/files/BenefitsFeatures_WT5000_Apr_2021.pdf

Instruction manuals:
Ghid de caracteristici și manual de utilizare WT5000 — https://cdn.tmi.yokogawa.com/1/10577/files/IMWT5000-00EN.pdf
